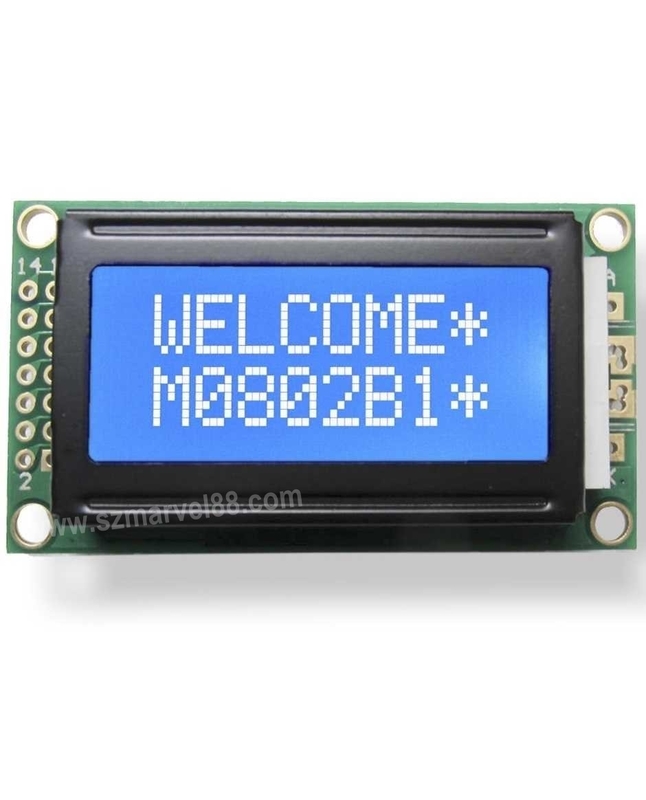

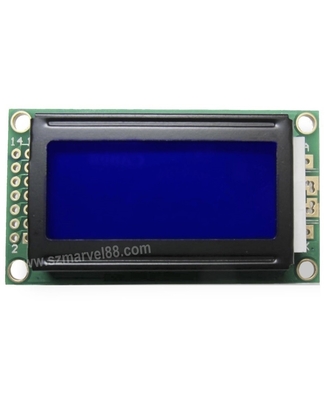

Discription: 0802 character LCD diplay module, 8x2 LCD
Display type: 8 characters * 2 rows
LCD type: STN(blue), transmissive/negative
Drive Method:1/160duty, 1/4bias, VOP 4.7V, VDD 3.3V
Backlight: White(side), VDD 3.3V, Idd 30mA
Drive IC: SPLC780D / HD44780
Viewing angle: 6 O’clock
Operating temperature: -20 to 70 degree Celsius
Storage temperature: -30 to 80 degree Celsius
Connection: ZEBRA
Outline dimension: 58.00mm(L)*32.00mm(W)*13.50mm(H)
Viewing area: 37.70mm(L)*16.00mm(W)
Active area: 27.81mm(L)*11.50mm(W)
Dots size: 0.56mm(L)*0.66mm(W)
Dots pitch: 0.60mm(L)*0.70mm(W)
Character size: 2.96mm(L)*5.56mm(W)
Character Pitch: 3.55mm(L)*5.94mm(W)
