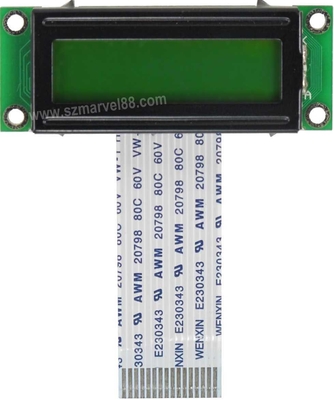

M1602E-Y5

    • M1602E-Y5
    • M1602E-Y5
  • M1602E-Y5

    Product Details:

    Contact Now
    Detailed Product Description

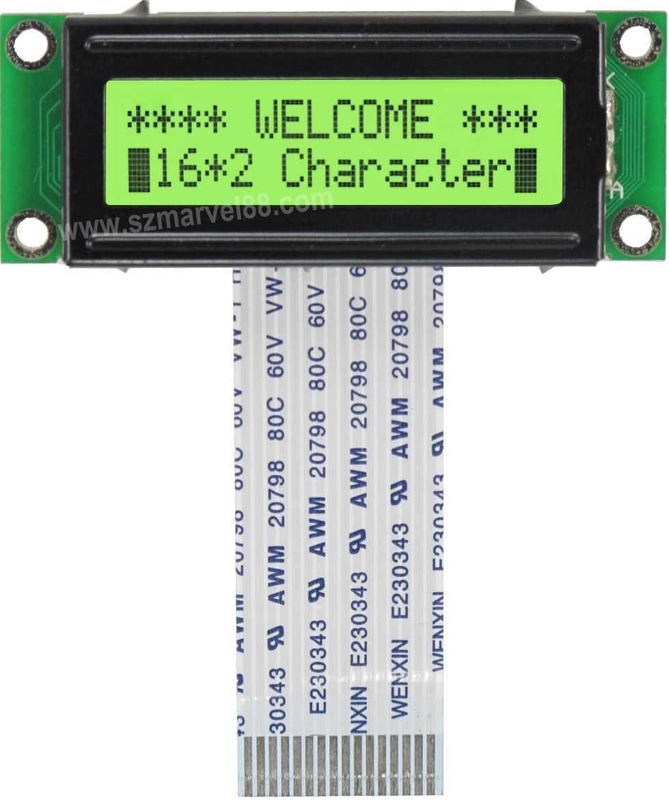

    Display type: 16 characters * 2 rows
    LCD type:   STN(Y-G), transflective/positive
    Drive Method:1/16duty, 1/5bias, VOP 4.7V, VDD 5.0V
    Backlight:   Yellow-Green(side), VDD 5.0V, Idd 25mA
    Drive IC: SPLC780D / HD44780
    Viewing angle: 6 o’clock
    Operating temperature: -20 to 70℃
    Storage temperature: -30 to 80℃
    Connection: ZEBRA

    Outline dimension: 53.00mm(L)*20.00mm(W)*8.00mm(H)
    Viewing area:      36.00mm(L)*10.00mm(W)
    Dots size:         3.15mm(L)*1.85mm(W)
    Dots pitch:        4.25mm(L)*2.15mm(W)
