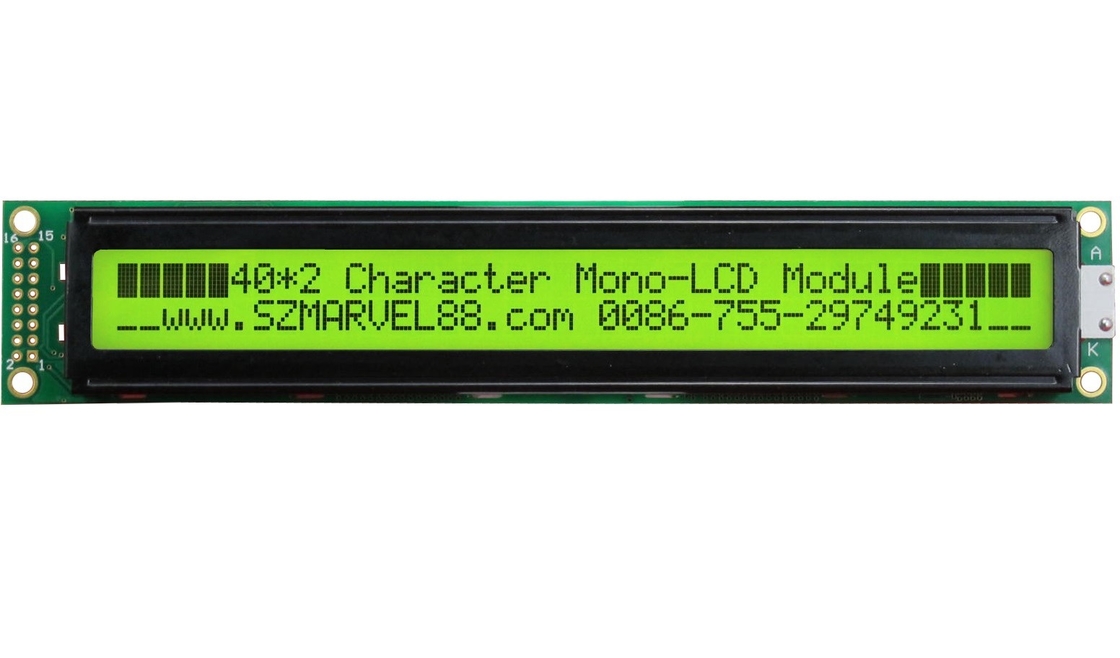

Display type: 40 characters * 2 rows
LCD type: STN(Y-G), transflective/positive
Drive Method:1/16duty, 1/5bias, VOP 4.7V, VDD 5.0V
Backlight: Y-G(bottom), VDD 5.0V, Idd 250mA
Drive IC: SPLC780D / HD44780
Viewing angle: 6 o’clock
Operating temperature: -20 to 70 degree Celsius
Storage temperature: -30 to 80 degree Celsius
Connection: ZEBRA
Outline dimension: 182.00mm(L)*33.50mm(W)*11.50mm(H)
Viewing area: 154.50mm(L)*15.80mm(W)
Active area: 147.50mm(L)*11.50mm(W)
Dots size: 0.60mm(L)*0.65mm(W)
Dots pitch: 0.65mm(L)*0.70mm(W)
Character size: 3.20mm(L)*5.55mm(W)
Character Pitch: 3.70mm(L)*5.95mm(W)
