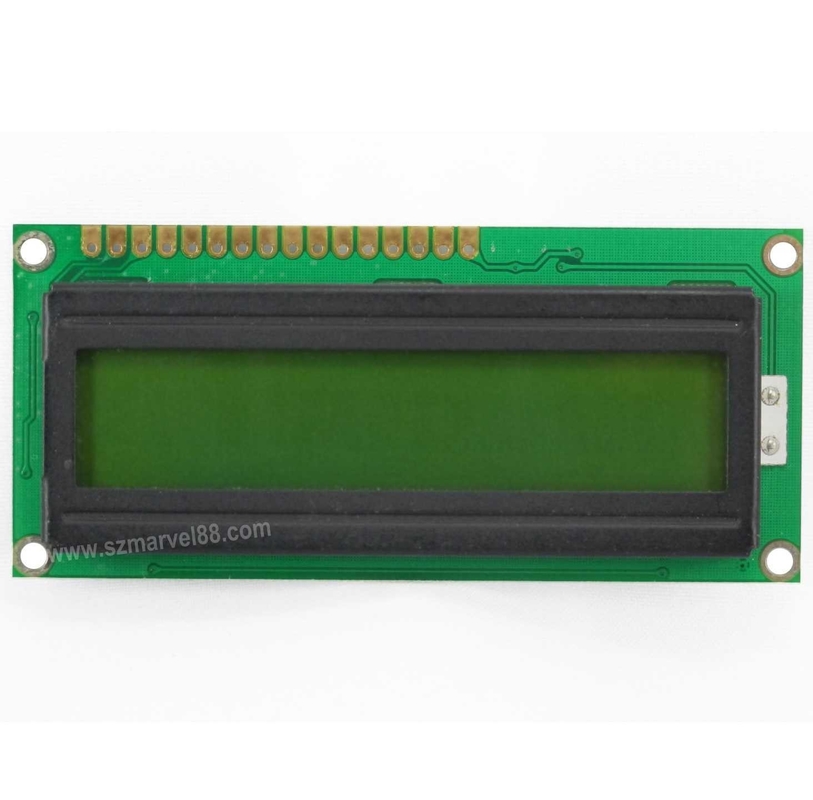

Model no: M1601A-Y5
LCD type: STN(Y-G), transflective/positive
Drive Method:1/16duty, 1/5bias, VOP 4.7V, VDD 5.0V
Backlight: Y-G(bottom), VDD 5.0V, Idd 100mA
Drive IC: SPLC780D
Viewing angle: 6 o’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA
Outline dimension: 80.00mm(L)*36.00mm(W)*12.00mm(H)
Viewing area: 64.50mm(L)*13.70mm(W)
Active area: 59.45mm(L)*5.95mm(W)
Dots size: 0.60mm(L)*0.70mm(W)
Dots pitch: 0.65mm(L)*0.75mm(W)
Character size: 3.20mm(L)*5.95mm(W)
Character Pitch: 3.75mm(L)*5.95mm(W)
Warranty: 12 months
