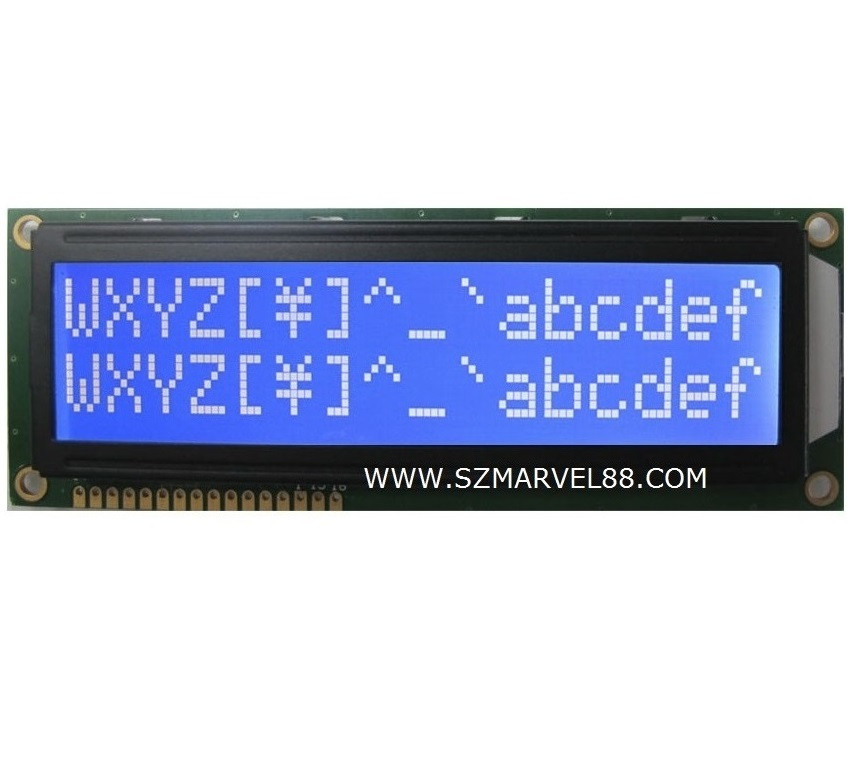

Model no: M1602M-B5
Display type: 16 characters * 2 rows
LCD type: STN(Blue), transmissive/negative
Drive Method:1/16duty, 1/5bias, VOP 4.7V, VDD 5.0V
Backlight: White(side), VDD 5.0V, Idd 70mA
Drive IC: SPLC780D
Viewing angle: 6 o’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA
Outline dimension: 122.00mm(L)*44.00mm(W)*13.50mm(H)
Viewing area: 99.00mm(L)*24.00mm(W)
Active area: 94.84mm(L)*20.00mm(W)
Dots size: 0.92mm(L)*1.10mm(W)
Dots pitch: 0.98mm(L)*1.16mm(W)
Character size: 4.84mm(L)*9.66mm(W)
Character Pitch: 6.00mm(L)*10.34mm(W)
