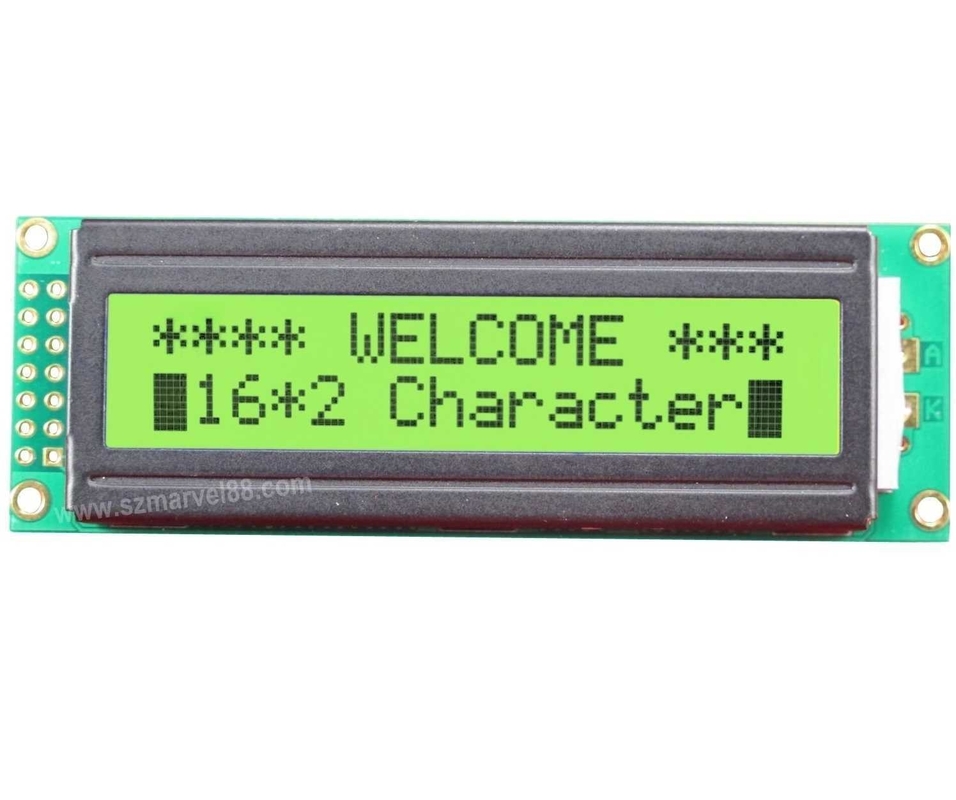

Model no: M160H-Y5
Display type: 16 characters * 2 rows
LCD type: STN(Y-G), transflective/positive
Drive Method:1/16duty, 1/5bias, VOP 4.7V, VDD 5.0V
Backlight: Yellow-Green(side), VDD 5.0V, Idd 25mA
Drive IC: SPLC780D
Viewing angle: 6 o’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA
Outline dimension: 85.00mm(L)*29.00mm(W)*12.00mm(H)
Viewing area: 64.25mm(L)*13.70mm(W)
Active area: 55.45mm(L)*10.75mm(W)
Dots size: 0.55mm(L)*0.60mm(W)
Dots pitch: 0.60mm(L)*0.65mm(W)
Character size: 2.95mm(L)*5.15mm(W)
Character Pitch: 3.50mm(L)*5.6mm(W)
