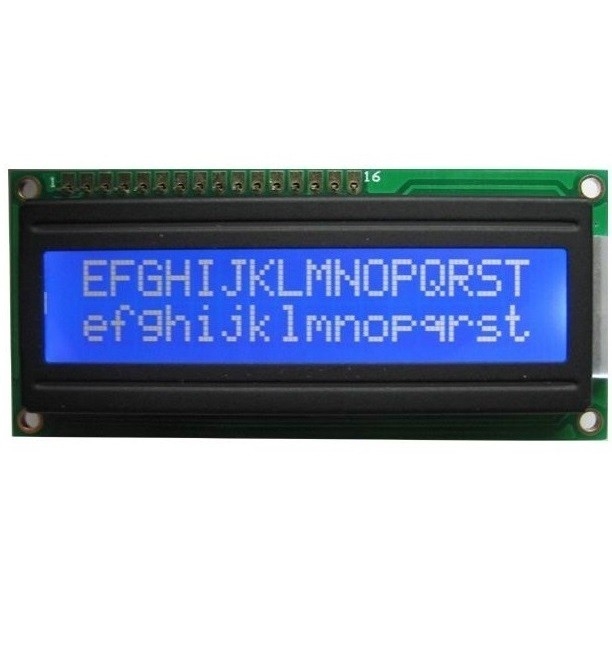

M1602A-B3,16X2 Character Dot-matrix LCM, STN(blue), transmissive/negative, SPLC780D Contro

M1602A-B3,16X2 Character Dot-matrix LCM, STN(blue), transmissive/negative, SPLC780D Contro

M1602A-B3,16X2 Character Dot-matrix LCM, STN(blue), transmissive/negative, SPLC780D Contro

Product Details:

Contact Now
Detailed Product Description

Model no:  M1602A-B3
Display type: 16 charactersX2 rows
LCD type:   STN(blue), transmissive/negative
Drive Method: 1/16duty, 1/5bias, VOP 3.1V, VDD 3.3V
Backlight: White(side), VDD 3.3V, Idd 25mA
Drive IC: SPLC780D
Viewing angle: 6 o’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA

Outline dimension: 80.00mm(L)*36.00mm(W)*12.00mm(H)
Viewing area:      64.50mm(L)*13.70mm(W)
Active area:       55.45mm(L)*10.75mm(W)
Dots size:         0.55mm(L)*0.60mm(W)
Dots pitch:        0.60mm(L)*0.65mm(W)
Character size:    2.95mm(L)*5.15mm(W)
Character Pitch:   3.50mm(L)*5.6mm(W)
