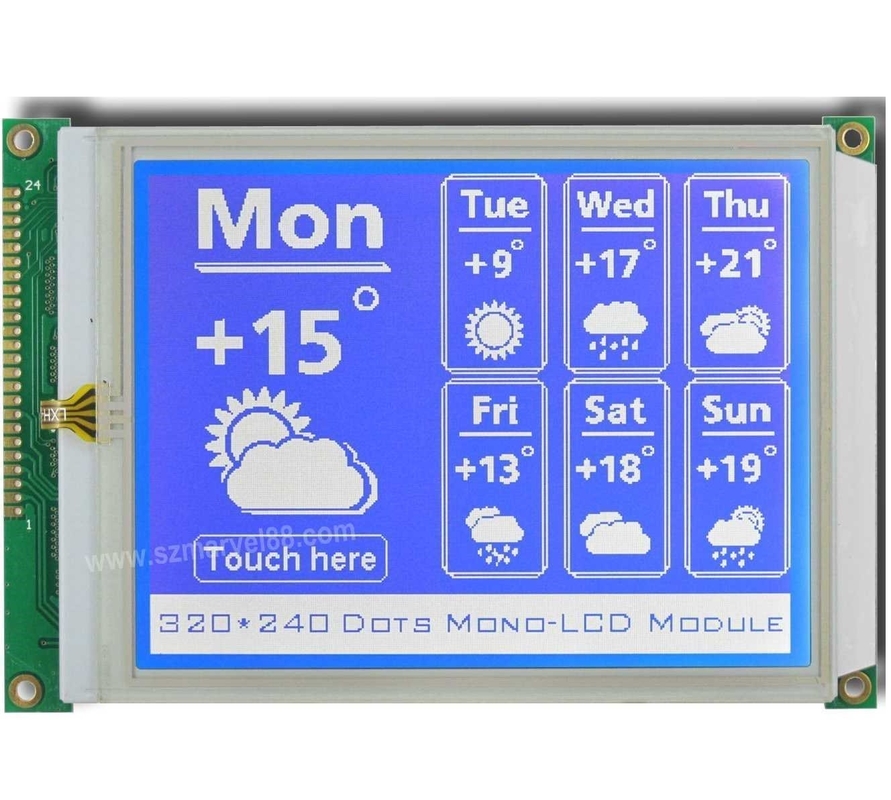

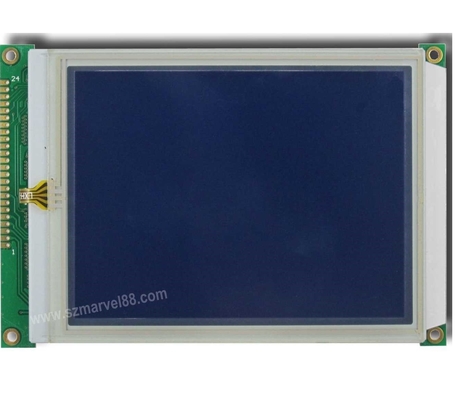

• M320240E-B5-TP
    • M320240E-B5-TP
  • M320240E-B5-TP

    Product Details:

    Contact Now
    Detailed Product Description

    Display type: 320 * 240 dots
    LCD type:  STN(Blue), transmissive/negative
    Drive Method:1/128duty, 1/17bias, VOP 24.0V, VDD 5.0V
    Backlight:   White(side), VDD 5.0V, Idd 210mA
    Drive IC: RA8835(LQFP)
    Viewing angle: 6 O’clock
    Operating temperature: -20 to 70℃
    Storage temperature: -30 to 80℃
    Connection: ZEBRA
    Outline dimension: 160.00mm(L)*109.00mm(W)*12.40mm(H)
    Viewing area:      122.00mm(L)*92.00mm(W)
    Active area:       115.17mm(L)*86.37mm(W)
    Dots size:         0.33mm(L)*0.33mm(W)
    Dots pitch:        0.36mm(L)*0.36mm(W)
