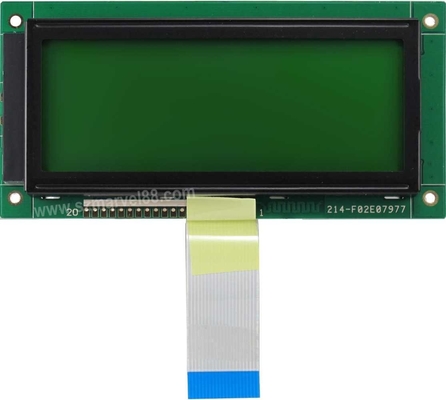

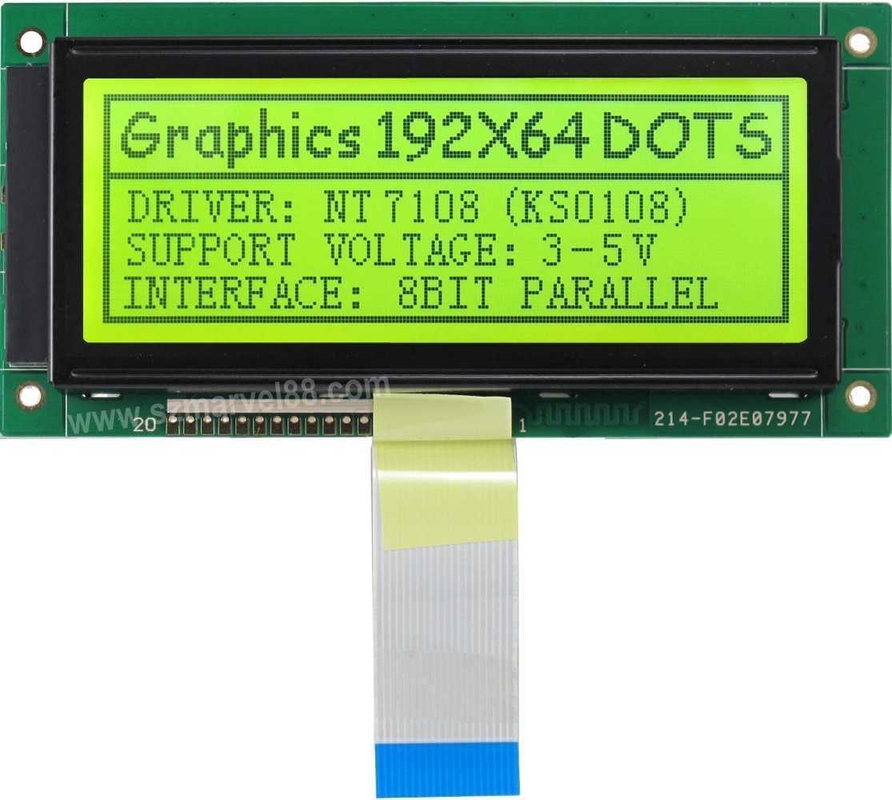

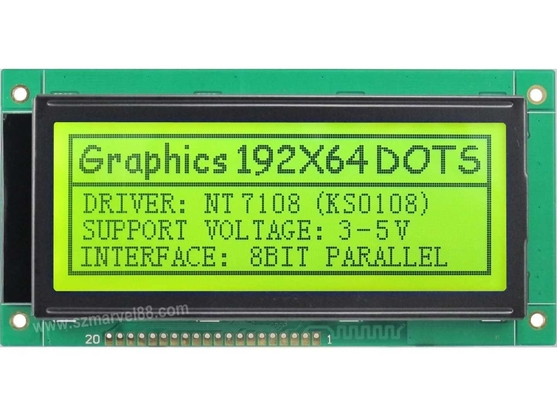

Display type: 192 * 64 dots
LCD type: STN(Y-G), transflective/positive
Drive Method:1/64duty, 1/9bias, VOP 13.0V, VDD 5.0V
Backlight: Yellow-Green(side), VDD 5.0V, Idd 50mA
Drive IC: NT7108
Viewing angle: 6 O’clock
Operating temperature: -20 to 70℃
Storage temperature: -30 to 80℃
Connection: ZEBRA
Outline dimension: 130.00mm(L)*65.00mm(W)*12.50mm(H)
Viewing area: 104.00mm(L)*39.00mm(W)
Active area: 97.87mm(L)*32.59m(W)
Dots size: 0.46mm(L)*0.46mm(W)
Dots pitch: 0.51mm(L)*0.51mm(W)
