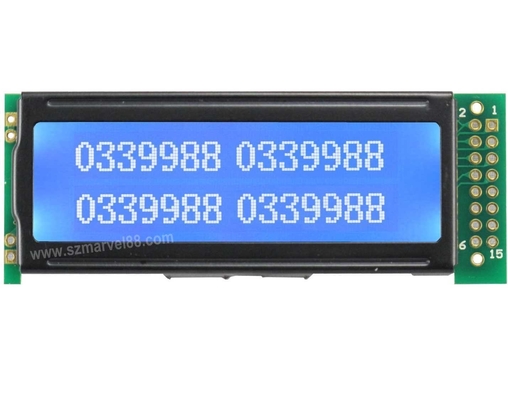

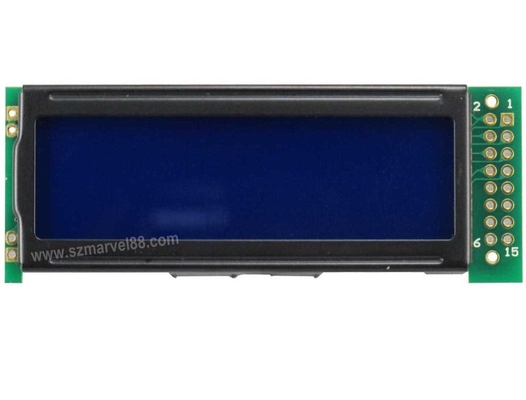

Display type: 122 * 32 dots
LCD type: STN(Blue), transmissive/negative
Drive Method:1/32duty, 1/5bias, VOP 4.7V, VDD 5.0V
Backlight: White(side), VDD 5.0V, Idd 36mA
Drive IC: SBN1661G
Viewing angle: 6 O’clock
Operating temperature: -20 to 70℃
Storage temperature: -30 to 80℃
Connection: ZEBRA
Outline dimension: 76.40mm(L)*29.10mm(W)*7.35mm(H)
Viewing area: 61.00mm(L)*18.00mm(W)
Active area: 48.76mm(L)*15.32mm(W)
Dots size: 0.36mm(L)*0.41mm(W)
Dots pitch: 0.40mm(L)*0.45mm(W)
