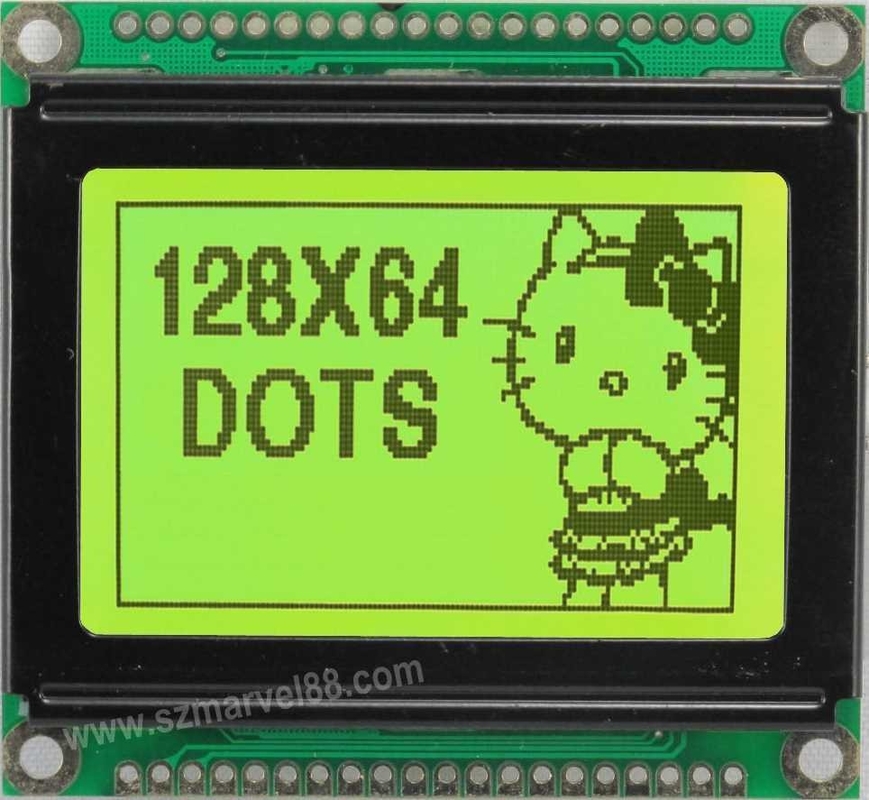

M12864I-Y5, 12864 Graphics LCD Module, 128 x 64 dot-matrix Display, STN YELLOW, transflect

M12864I-Y5, 12864 Graphics LCD Module, 128 x 64 dot-matrix Display, STN YELLOW, transflect

M12864I-Y5, 12864 Graphics LCD Module, 128 x 64 dot-matrix Display, STN YELLOW, transflect

Product Details:

Contact Now
Detailed Product Description

M12864I-Y5

Display type: 128x64 dots
LCD type:   STN(Y-G), transflective/positive
Drive Method:1/64duty, 1/9bias, VOP 8.5V, VDD 5.0V
Backlight:  Yellow-Green(EL), VDD 5.0V, Idd 30mA
Drive IC: NT7108
Viewing angle: 6 O’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA
Outline dimension: 54.00mm(L)*50.00mm(W)*8.00mm(H)
Viewing area:      43.90mm(L)*29.00mm(W)
Active area:       40.92mm(L)*27.00mm(W)
Dots size:         0.28mm(L)*0.35mm(W)
Dots pitch:        0.32mm(L)*0.39mm(W)
