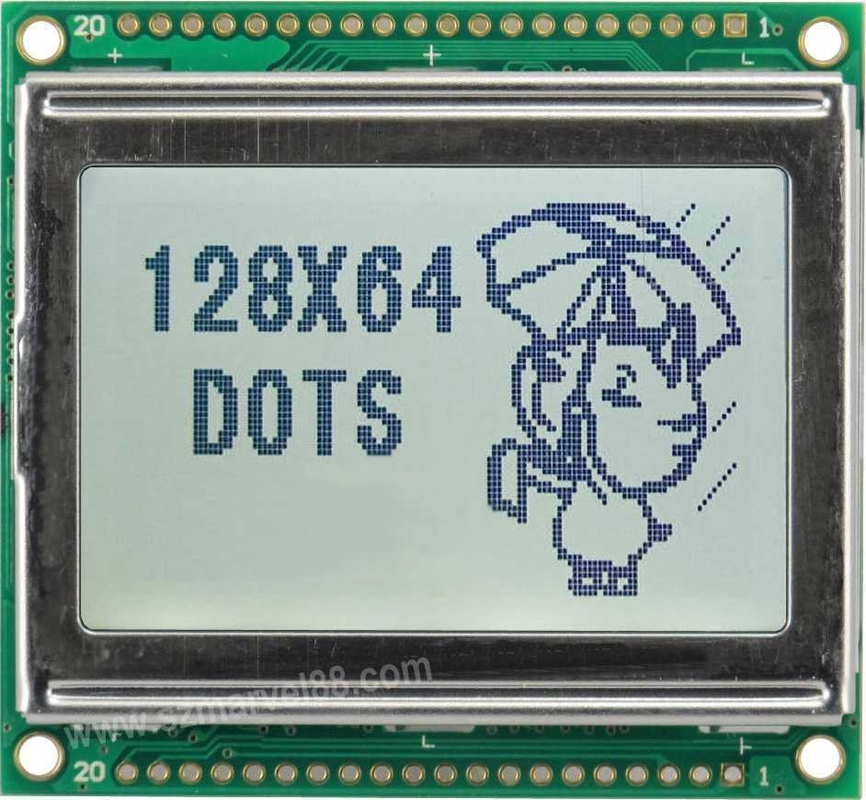

Display type: 128 x 64 dots
LCD type: FSTN(Gray), transmissive, positive
Drive method: 1/64 duty, 1/9 bias, VOP 9V, Vdd 5V
Backlight: white(Side)
Vdd: 15V
Idd: 60mA
Viewing angle: 180 degrees
Drive IC: ST7565
Temperature:<ul>
Operating: -20 to 70 degree C
Storage: -30 to 80 degree C
Outline dimension (L x W x W): 54 x 50 x 8mm
Viewing area (L x W): 44 x 29mm
Dots size (L x W): 0.28 x 0.35mm
