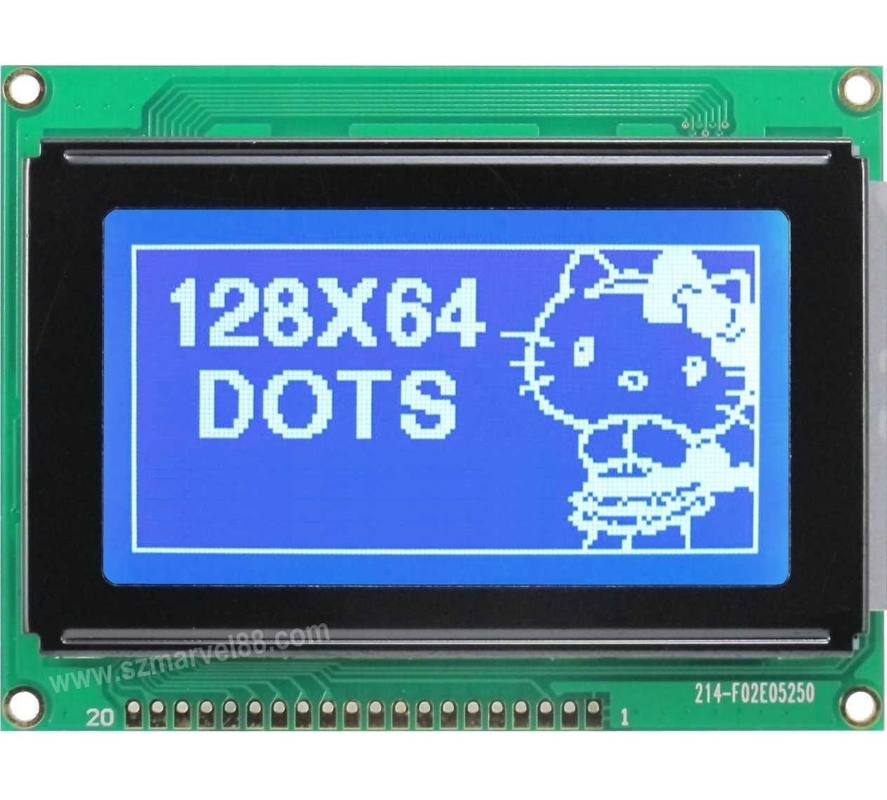

M12864J-B5, 12864 Graphics LCD Module, 128 x 64 dot-matrix Display, STN(Blue), transmissiv

M12864J-B5, 12864 Graphics LCD Module, 128 x 64 dot-matrix Display, STN(Blue), transmissiv

M12864J-B5, 12864 Graphics LCD Module, 128 x 64 dot-matrix Display, STN(Blue), transmissiv

Product Details:

Contact Now
Detailed Product Description


M12864J-B5
Display type: 128 * 64 dots
LCD type:   STN(Blue), transmissive/negative
Drive Method:1/64duty, 1/9bias, VOP 9.0V, VDD 5.0V
Backlight:  White(Side), VDD 5.0V, Idd 80mA
Drive IC: NT7108
Viewing angle: 6 O’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA
Outline dimension: 93.00mm(L)*70.00mm(W)*13.00mm(H)
Viewing area:      70.75mm(L)*38.85mm(W)
Active area:       66.52mm(L)*33.24mm(W)
Dots size:         0.48mm(L)*0.48mm(W)
Dots pitch:        0.52mm(L)*0.52mm(W)
