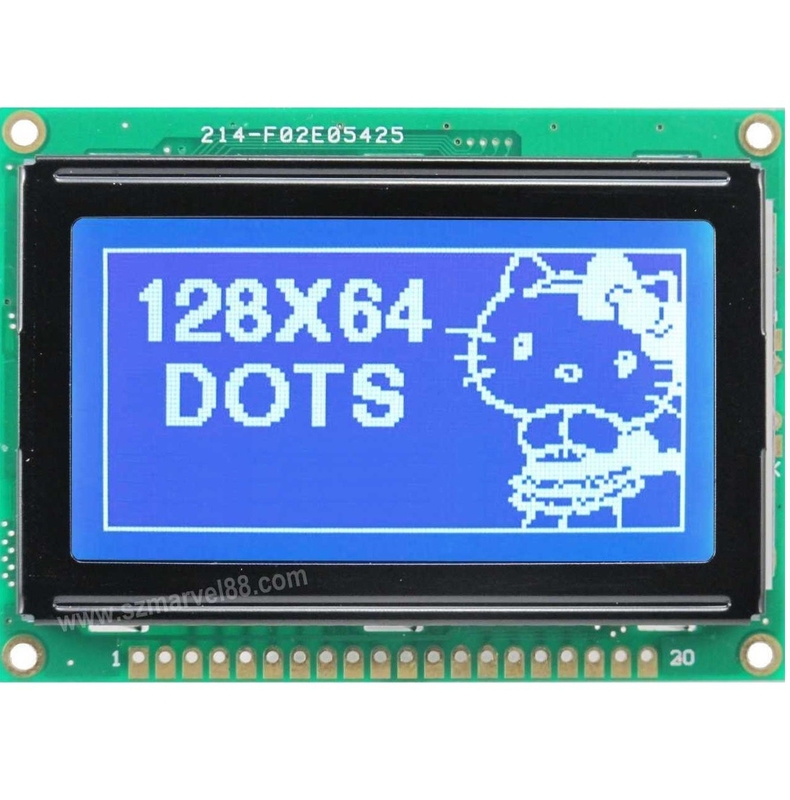

M12864N-B5
Display type: 128x64 dots
LCD type: STN(Blue), transmissive/negative
Drive Method:1/64duty, 1/9bias, VOP 10.5V, VDD 5.0V
Backlight: White(Side), VDD 5.0V, Idd 70mA
Drive IC: NT7108
Viewing angle: 6 O’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA
Outline dimension: 75.00mm(L)*52.70mm(W)*8.90mm(H)
Viewing area: 60.00mm(L)*32.60mm(W)
Active area: 55.00mm(L)*27.48mm(W)
Dots size: 0.39mm(L)*0.39mm(W)
Dots pitch: 0.43mm(L)*0.43mm(W)
