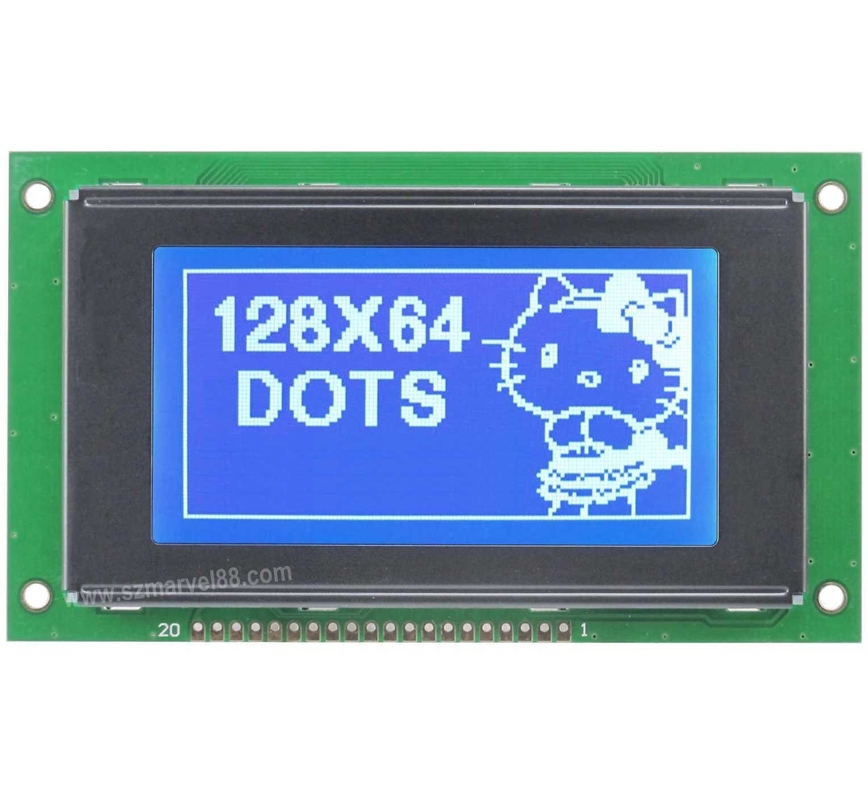

M12864A3-B5
Display type: 128 * 64 dots
LCD type: STN(Blue), transmissive/negative
Drive Method:1/64duty, 1/9bias, VOP 10.5V, VDD 5.0V
Backlight: White(side), VDD 5.0V, Idd 70mA
Drive IC: NT7108
Viewing angle: 6 O’clock
Operating temperature: -20 to 70 degree celsius
Storage temperature: -30 to 80 degree celsius
Connection: ZEBRA
Outline dimension: 113.00mm(L)*65.00mm(W)*12.70mm(H)
Viewing area: 73.50mm(L)*39.00mm(W)
Active area: 66.52mm(L)*33.24mm(W)
Dots size: 0.48mm(L)*0.48mm(W)
Dots pitch: 0.52mm(L)*0.52mm(W)
